LiveNoise Terminal with WiFi and Ethernet

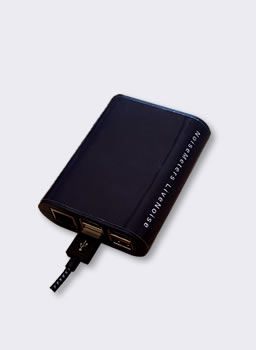

LiveNoise Terminal
LiveNoise Terminal

More Options

LNT-1
€756.00
LiveNoise Terminal
In stock

LNT-2
€1452.00
LiveNoise Terminal Pack of 2
In stock

LNT-3
€2133.00
LiveNoise Terminal Pack of 3
In stock

LNT-5
€3479.00
LiveNoise Terminal Pack of 5
In stock

LNT-10
€6808.00
LiveNoise Terminal Pack of 10
In stock
CU-USB
€27.00
Power Supply for USB Powered Meters
In stock
LNT-1
€756.00
LiveNoise Terminal
In stock

LNT-3
€2133.00
LiveNoise Terminal Pack of 3
In stock

Features

  • Connect to your existing SoundEar 3 unit
  • Network connection (WiFi or Wired Ethernet)
  • WiFi or Wired Ethernet connection
  • Long term data storage

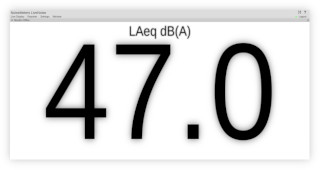

  • Display sound levels on a large monitor or TV

Applications

  • Office and Call Centre Noise
  • Hospital Noise
  • Factory Noise
  • Hearing Protection

Overview

The LNT LiveNoise Terminal is for customers who already have a SoundEar 3 or SoundEar 3 Industrial noise warning sign, or the SoundEar 3-320 noise processor. The LNT module is added to your existing SoundEar 3 units to provide data logging, network connection and the ability to display the sound levels on a monitor or TV via its HDMI connection.

A system can consist of one or more LNT enabled noise monitors. They connect to your local area network using either WiFi or a wired Ethernet connection. The noise monitors can work alone, connected to a display, they can be connected to the Supervisor software for real-time display, or they can upload to the cloud server for online reporting.

LiveNoise System - "Internal"

On a purely "internal" system, the noise monitor communicates continuously with the LiveNoise Supervisor software running on a computer on your network to provide real-time noise levels, long-term stored noise measurements and high-noise alarms. Using this setup there is no need for the monitors or software to communicate with the outside world.

The LiveNoise Reporter software can generate reports of the noise and alarms over daily, weekly, monthly or other custom periods.

LiveNoise System - "Cloud"

With the cloud based reporting system the noise monitor uploads its measurements to our LiveNoise Server for you to view using the Web Reporter. You access this through a web browsers.

With this setup there is no software to run locally and you can view the results from anywhere with Internet access.

Best of Both Worlds

The standard LiveNoise System includes both methods. You can use the Supervisor software on your local network, you can use the cloud based reporting, or you can use both at the same time.

Mounting

The Noise Warning Sign can be mounted on a wall using a single screw. The LiveNoise Terminal is mounted close by using two screws or it can just sit on a shelf or other suitable surface.

If a more secure mounting method is needed or you want to angle the noise sign away from the wall then an adjustable VESA mount is available. An extra security bracket is also available for the LiveNoise Terminal. Please contact us for more information.

Connection & Power

A standard USB cable (included) connects the LiveNoise Terminal to the Noise Warning Sign. The system requires 5V DC, which is provided by the power adapter that is included.

Wall Mounting

mounting the livenoise terminal

The LiveNoise Terminal can be mounted on a wall using two screws, or it can lay flat on a shelf or desk.

For greater security a VESA mount option is also available.

connected to noise warning sign

A typical installation with a LiveNoise Terminal connected to a SoundEar 3 Noise Warning Sign. The SoundEar 3 is not included.

Connection

The LiveNoise Terminal can communicate with the LiveNoise Supervisor software to provide a real-time display of sound levels and for long-term noise measurement storage. With the Supervisor software running on a computer on your network, the LiveNoise Terminal just needs WiFi access or a wired Ethernet connection to the same network - and of course connected to a SoundEar 3 Noise Warning Sign or Noise Processor.

WiFi

If you have a WiFi network then all you need to do is provide the noise monitor with the router name and password. This configuration is carried out using the supplied software.

Wired Ethernet

The noise monitor has an Ethernet port (RJ45) for connection to your wired network. This is a weatherproof socket and for outdoor use you will need a suitable weatherproof cable or weatherproof RJ45 cable housing. For indoor use a standard RJ45 network cable can be used.

LiveNoise Network

The LiveNoise Terminal will need to be connected to your network in order to send the noise measurements to the Supervisor software or to the cloud server, depending on your configuration.

Local Network

A computer on the network runs the LiveNoise Supervisor software, which shows the real-time noise levels and downloads all the measurements for long term storage and reporting.

Other computers on the network can access the noise measurements using the LiveNoise Reporter software.

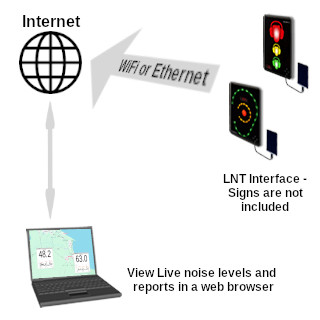

Cloud Reporting

The monitors send the noise measurements to our server and you view them using Web Reporter.

Software

The LiveNoise Supervisor, Reporter and the online Web Reporter are included when you buy one or more LiveNoise Noise Monitors.

With the noise monitors connected to your network, you can chose how you want to deal with a live display and with long term reporting.

Local Network

Operating on your own WiFi/Ethernet network, with live sound levels sent to a Windows computer, you will use the following software:

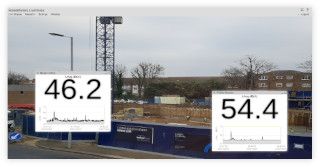

Supervisor - Connects to all your noise monitors, showing the live sound levels, indicating any high noise level alarms and storing long term measurements.

Reporter - Using the measurements stored by Supervisor, this software generates long term noise reports: daily, weekly, monthly or custom periods.

Online Reporting

The noise monitors send all the noise measurements to our cloud server, from where the Web Reporter provides you with noise reports.

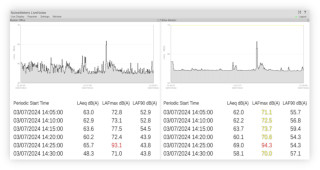

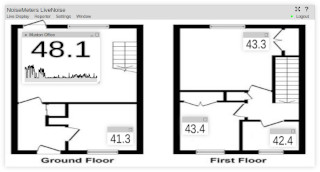

Supervisor Software

  • Connects to Noise Monitors
  • Real-Time Sound Levels
  • High Noise Level Alarms
  • Configure Remote Monitors
  • Downloads Measurements

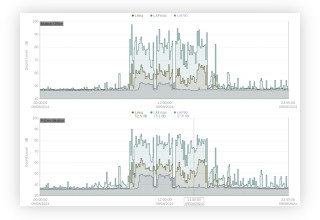

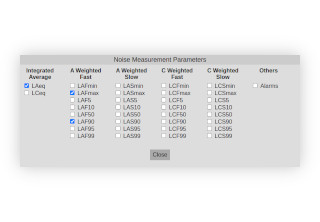

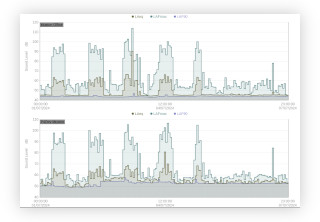

Reporter Software

  • View Noise Measurements
  • Noise and Alarm Reports

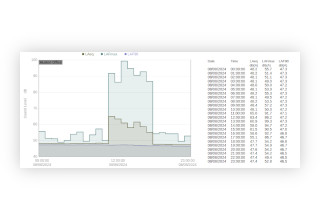

  • Daily, Weekly, Monthly Reports

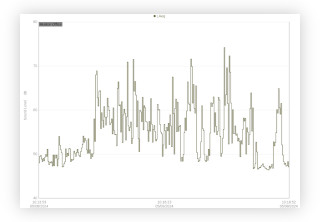

  • 1s Leq Noise Profile
  • Create Reports for Sharing

Web Reporter

  • No Software to Install
  • Access Using Your Browser

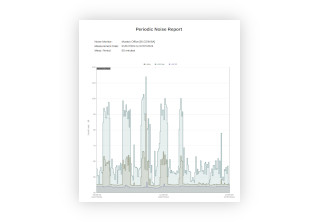

  • Periodic Noise Reports
  • High Noise Alarm Reports
  • 1s Leq Noise Profile

Technical Specifications

USB PortFor USB memory stick configuration and keyboard
Ethernet PortRJ45 socket
Video OutputHDMI
Internal Memory16 GB for up to 5 years storage
Dimensions70 x 88 x 29 mm, 2.8" x 3.5" x 1.2"
Power5 VDC, max 12W (power adapter included)

Dimensions

livenoise terminal dimensions
Noise Warning Sign Dimensions
