The HAVi Hand Arm Vibration Monitor tracks the length of time that a worker is exposed to power tool vibration. Given the vibration magnitude for the tool, it then calculates the total exposure and displays the HSE points.

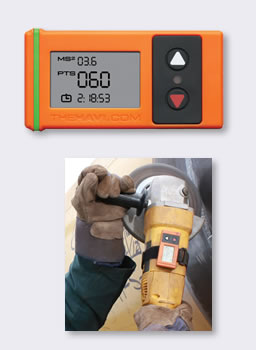

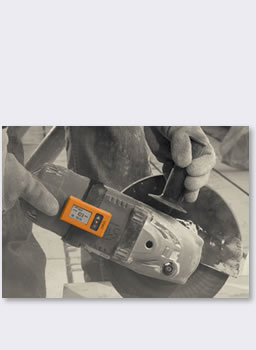

The HAVi monitor is attached to the power tool using the strap or ties provided - no glue or other permanent fixing so it can be easily moved between tools.
After selecting the vibration magnitude for the tool (done using the buttons on the front), the HAVi detects the tool being started and accurately tracks the time used. This avoids a common problem of workers over-estimating the length of time that the tool was actually powered and in use. See the Using It tab above for more details.

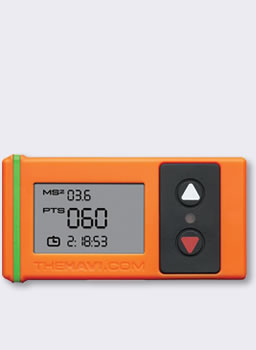

The HAVi shows the vibration exposure in m/s2 along with the HSE points (so you don't have to work them out) and the trigger time.
The HAVi is used to help you assess the level of vibration that workers are exposed to when using various power tools. The exact details of a full HAVS risk assessment may vary, but in general consists of:
The HAVi makes this process easier and more accurate by measuring the length of time the tool is used for and by calculating the total exposure, even providing you with the HSE points that are used for the risk assessment decisions.
The amount of vibration produced by the tool must be known. This is provided by the manufacturer or, especially with tools that vary considerably with different materials, can be measured using a Vibration Meter.
Set the m/s2 figure for the tool using the buttons on the front of the HAVi.
The HAVi is attached to the tool using the velcro strap or ties that are supplied in the kit. It needs to be firmly attached, but this is not as critical as when using a Vibration Meter - the HAVi detects the vibration of the tool but is not measuring it.
The HAVi can be moved between tools to follow the worker, or can be left attached to one tool to avoid having to re-enter the vibration magnitude figure.
The HAVi senses the tool operating. It starts and stops automatically, recording the length of time the tool is in use (trigger time), and calculating the total vibration exposure. This is displayed as HSE points.
The monitor also has a warning light that flashes amber when the Exposure Action Level (EAV = 100 points) is exceeded and red when the Exposure Limit Value (ELV = 400 points) is exceeded.
The HAVi Vibration Monitor is usually supplied in a kit that includes 6, 12 or 24 monitors along with all necessary accessories.
The order codes for the HAVi Kits are HAVI-Kx, where x indicates the number of monitors included. For example, the HAVI-K6 kit includes six monitors and accessories.
We have a range of Combination Kits that include a sound level meter or noise dosimeters in a robust carrying case.
For more information please visit the Combination Kits pages.
The HAVi Manager System is a complete off the shelf solution when it comes to HAVS compliance that can be easily implemented by one person! The system consists of:
The order code for the HAVi Manager option is HAVI-MAN. The price is shown below.
