Hire of Hand Arm Vibration Meter

hand arm vibration meter

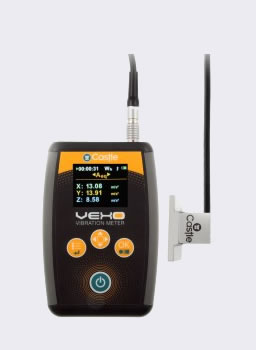

The GA2006H Vexo Hand Arm Vibration Meter makes all the measurements required by the regulations for HAV risk assessments.

Applications

  • Hand Arm Vibration Assessments
  • ISO 5349 : 2001
  • ISO 8041 : 2005

Main Features

  • Tri-axial
  • Clear colour display
  • Data logging to flash memory

Hire Kit Includes

  • Meter with Tri-Axial Accelerometer and Mounting Block
  • Vibdata Software
  • Carrying Case
<
>
M
T
W
T
F
S
S
Hire Period:
€

Overview

The VEXO range of hand-arm vibration meters have been designed to make measurements as easy as possible to carry out. There are enough complications when assessing HAV, without complicated meters settings making it worse.

The GA2006H measures all the parameters needed to satisfy the regulations and the HSE guidelines.

vexo hand arm vibration meter

Applications

The GA2006H has been specifically designed for the measurement of hand-arm vibration. It is fully compliant with ISO 8041:2005, the standard that specifies the performance and tolerance limits for instruments used in assessing the human response to vibration. It is also the correct grade of meter for making measurements to ISO 5349:2001, the standard for the measurement and evaluation of human exposure to hand-transmitted vibration.

vexo hand arm vibration meter
tri-axial accelerometer

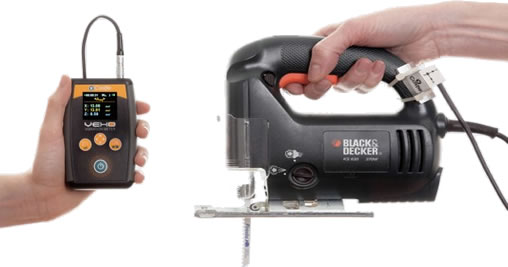

1. Attach accelerometer to tool.

Must be securely attached.

Mounting block and attachments are included in the kit.



start vibration measurement

2. Start the Measurement.

Press the OK/Run/Stop key to start the measurement.



display vibration measurements

3. View or Download Results

View the results on-screen or download to the software, which is included in the hire kit.

GA2006H Vexo HAV Meter Specifications

StandardsISO 8041:2005 Human Response to Vibration
For compliance withISO 5349:2001 Measurement and evaluation of human exposure to hand-transmitted vibration
RangeLow: 0.05 - 200.0m/s-2 / 0.005 - 20.4g
High: 0.50 - 2000.0m/s-2 / 0.50 - 204.0g
ParametersArms, Aeq, Amax, Peak, Vector Sum, Exp. Points
Linear Range72 dB
Freq. WeightingWH - Hand Arm Filter



MemoryFlash, up to 992 recordings
TransducerKD1010, 10mV/g
Noise FloorLow Range: <0.002 m/s-2, High Range: <0.020 m/s-2
PowerNiMH rechargeable, typically 10 hours continuous use
ConnectionsAC Output: 4 pole 3.5mm jack
Download: USB Micro B
Environmental-10°C to 50°C, Humidity to 90% RH non condensing
