The CK171B noise measurement kit is available for hire over a period of one week or longer. This is a top specification meter that is ideal for environmental noise surveys and exceeds the requirements for occupational noise measurement too.
Applications
Main Features
Hire Kit Includes

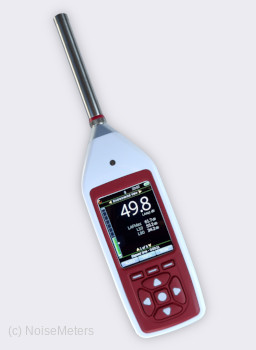

The CR171B Optimus Environmental is a top of the range meter and is fitted with options, such as octave and 1/3 octave band filters, detailed data logging with time history plots, and environmental noise measurement parameters.
This meter also has the Audio Recording feature fitted, making the positive identification of a noise source much easier - you listen to it!
It is essential that a sound level meter meets the correct standards for the measurements you intend to make. Most regulations will indicate the type and grade of meter to use. As the CR171B is a Class 1 (the most accurate version) to IEC 61672 and Type 1 to ANSI S1.43, it is an Integrating meter and fitted with 1/3 octave band filters, it is ideal for most applications.
This meter comes complete with data logging, providing a detailed graph of the sound level over time. It also measures the required environmental noise parameters, such as periodic LAeq, LAmax and Ln statistical values.
Automatic timers can be used to make repeating measurements. Many regulations require repeating measurements of 5 minute, 15 minute or hourly duration.
As this is a Class 1 Integrating Sound Level Meter it exceeds the requirements for occupational noise assessments. If you need to measure both noise outside and inside the factory then this meter is ideal.
For pure occupational measurements, please visit the Integrating Sound Level Meter is more cost effective.
Many regulations state that the meter's function should be checked before starting measurement.
Put the Calibrator on the mic. and select the Calibrate option to do this automatically.
Press the Start key to carry out a manual measurement. Otherwise, use the timers to make 15 minute measurements for example.
All parameters are stored in the meter for viewing or download - no need to choose which measurements you need, they are all there.
Back in the office, the measurements can be viewed on the meter's display or they can be downloaded to a computer.
The hire kit includes the NoiseTools software for downloading and reporting. If you prefer to create your own reports then the noise measurements can be exported to Excel or similar software for maximum flexibility.
| Standards | IEC 61672-1:2013 Class 1 |
| ANSI S1.4, ANSI S1.43 Type 1 | |
| IEC 60651:2001 Type 1 I | |
| IEC 60804:2000 Type 1 | |
| 1/1 and 1/3 Octave Band Filters to IEC 61260 & ANSI S1.11-2004 | |
| Measurement Range | 20dB to 140dB RMS Single Range |
| Noise Floor | < 18 dB(A) |
| Frequency Weightings | RMS & Peak : A, C, & Z Measured Simultaneously |
| Frequency Bands | 10 x Octave Bands (31.5Hz to 16kHz) |
| 36 x 1/3 Octave Bands (6.3Hz to 20kHz) | |
| Time Weightings | Fast, Slow & Impulse Measured Simultaneously |
| Memory | 4GB with 32GB factory fit option |
| Time History | 10ms, 62.5ms, 125ms, 250ms, 1/2 sec, 1 sec, 2 sec |
| VoiceTag Audio | Up to 30 seconds of audio notes with each measurement |
| Bluetooth | BLE compatible with Android and iOS devices. |
| Mobile applications available from Google Play and the App Store | |
| Audio Recording | Off, Manual, Threshold Triggered, Advanced Trigger |
| Studio Quality - 96kHz/32bit WAV format | |
| High quality - 48kHz/24bit WAV format | |
| Standard quality - 16kHz/16bit WAV format | |
| Pre-Trigger function | |
| Integrator Quick settings | EU, OSHA HC & OSHA NC, OSHA HC & ACGIH, MSHA HC & MSHA EC |
| Ln Statistical Values | 14 independent statistical Ln values calculated from 1/16th LAF |
| 7 preset to L1.0, L5.0, L10.0, L50.0, L90.0, L95.0 & L99.0 | |
| Measurement control | Manual, 1 min, 5 min, 10 min, 15 min,30 mins, 1 hour, Lden |
| Automatic Synchronisation & Repeat | |
| Pause & Back Erase with user selectable duration | |
| Dimensions | Size: 283mm x 65mm x 30mm |
| Weight: 300gms/10oz | |
| Power | Battery: 4 x AA Alkaline |
| Typically 12 hours with Alkaline AA | |
| Typically 20 hours with Lithium AA Non-Rechargeable | |
| Connections | USB Type B to PC |
| AC & DC Output via ZL:174 (2 x Phono, 1m) | |
| Multi-pin IO for external power via ZL:171 cable (2.1mm socket) | |
| External Power: 5v-15v via MultiIO socket via ZL:171 cable (2.1mm socket) | |
| Case | Material: High Impact ABS-PC with soft touch back & keypad |
| Tripod Mount | 1/4" Whitworth socket |
| Environmental | Temperature: Operating -10°C to +50°C, Storage -20°C to +60°C |
| Humidity: Up to 95% RH Non Condensing | |
| Electromagnetic | IEC 61672-1:2002 & IEC 61672-2:2003 |
| IEC 61672-1:2013 & IEC 61672-2:2013 | |
| Except where modified by EN 61000-6-1:2007 & EN 61000-6-1:2007 | |
| Language options | English, French, German, Spanish. |
| Displayed Functions | LXY, LXYMax, LXYMin, LXeq, LCPeak, LAPeak, LZPeak, LCeq-LAeq, LXE, LAIeq |
| Graph of Short LAeq, LCPeak | |
| Integrators 2 & 3: TWA, Dose%, Est Dose% | |
| Real-Time 1:1 Octave Bands (Graphical & Numeric) | |
| Real-Time 1:3 Octave Bands (Graphical & Numeric) | |
| Leq LF (20Hz to 200Hz) | |
| Measurement Run Time | |
| 14 Statistical Ln values | |
| Stored Functions | LXYMax & Time History of LXYMax |
| LAeq, LCeq, LZeq, LCPeak, LZPeak, LAPeak, LAIeq | |
| Time History of LAeq, LCeq, LZeq, LCPeak, LZPeak, LAPeak, LAIeq | |
| Integrators 2 & 3: Lavg , TWA. %Dose | |
| Time History of Lavg | |
| 1/1 and 1/3 Octave Bands:Overall Leq & Leq Time History for each band | |
| Ln Values: 14 independent statistical values | |
| Audio recording during measurement | |
| where x=A ,C ,Z; y= F, S, I |
