Hire of 2 x Intrinsically Safe doseBadge Noise Dosimeters

dosebadge intrinsically safe noise dosimeter hire

The Intrinsically Safe doseBadge noise dosimeter is approved for use in hazardous and potentially explosive atmospheres. Kits can be hired for periods of 1 week or longer.

Particularly useful for people who move around in hazardous environments, the I.S. doseBadge kit contains two dosimeters, making it ideal for monitoring a larger number of people during the hire period.

Applications

  • Worker noise exposure in explosive atmospheres
  • Oil, gas and mining industries
  • Suitable for confined spaces

Main Features

  • Small, lightweight and strong
  • Monitor two workers at the same time
  • No wires to catch on machinery

Hire Kit Includes

  • 2 x doseBadge Noise Dosimeters (ATEX approved
  • doseBadge Reader and Calibrator
  • Battery Charger
  • Software and download cable
  • Calibration Certificates for I.S. doseBadges and Calibrator
<
>
M
T
W
T
F
S
S
Hire Period:

Noise in a Potentially Explosive Atmosphere

Assessing a worker's noise exposure in a hazardous environment is often better carried out using noise dosimeters rather than following the worker round with a sound level meter.

The ATEX approved intrinsically safe noise kit includes two dosimeters, so you can monitor the noise exposure of two workers at the same time, without the need to make manual measurements.

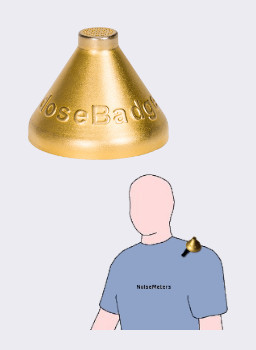

The Intrinsically Safe doseBadge

The noise dosimeter mounts on the worker's clothing using either the crocodile clip (this is the usual way) or using pin mounts.

The best way is to leave it measuring for the full working shift, providing you with the noise exposure level, LEPd or TWA, as required by the occupational noise regulations.

Occupational Noise in Hazardous Environments

The doseBadge Noise Dosimeter is designed to measure a worker's noise exposure in line with the regulations and the guidelines. This approved (intrinsically safe) version of the doseBadge is for use in hazardous and potentially explosive atmospheres.

This version of the doseBadge makes exactly the same measurements as the standard Industrial doseBadge.

  • Mining
  • Oil and Gas
  • Petrochemical
  • Printing Works
  • Environments with combustible dust (e.g. flour)

Start of the Working Day

  • Fit the doseBadge onto the Reader and press the Reset key to clear its memory
  • Calibrate the doseBadge by pressing the Cal key
  • Attach the doseBadge to the worker using the supplied fixing
  • Point the Reader at the doseBadge and press the Run key

Leave the doseBadge measuring for the full working shift...

While it is possible to measure the LAeq over a shorter period and then calculate the exposure (LEpd), when using a dosimeter it is better to leave it measuring for the full working shift. This saves doing the potentially complex noise exposure calculations and ensures you measure all relevant noise levels.

End of the Working Day

  • Point the Reader at the doseBadge and press the Stop key
  • Remove the doseBadge from the worker and fit it onto the Reader
  • Press the Cal key if you want a second calibration
  • Press Read to transfer the results to the Reader
  • Put the doseBadge on to charge to be ready for another day's monitoring

The measurements can be viewed on the Reader's built in graphic screen or they can be transferred to a computer for storage, analysis and reporting. The Reader can download a number of doseBadges before the measurements are transferred to a computer, so it is only necessary to carry the Reader on site.

StandardsIEC 61252:1993 Personal Sound Exposure Meters
ANSI S1.25:1991 Personal Noise Dosimeters
Reader's Internal Acoustic Calibrator to IEC 60942:2001 Class 2
Measurement Range70 dB(A) to 130 dB(A) RMS
120 dB(C) to 140 dB(C) Peak
Measurement Functions1 Minute Time History of: LAeq (3dB), LAVG (4dB or 5dB), Peak (C) Level, Battery Level
For 3dB Exchange Rate: LAeq, LEX,8h, LAE, % Dose, Exposure (Pa2h)
For 4dB & 5dB Exchange Rates: LAVG, TWA, % Dose, Estimated % Dose
Weightings‘A ’ for all RMS measurements.
‘C ’ for Peak Sound Pressure
EnvironmentalTemperature: -10 °C to +50 °C Operating
Humidity: Up to 95%RH Non-Condensing
DimensionsMicrophone Apex Ø13.0mm,Base Ø47mm,Height 38mm
WeightdoseBadge: 45gms (1.6oz)
Reader: 400gms (14oz)
Group I Non-MiningATEX: CE Ex II 1 G
IECEx: IECEx BAS 06.0084, Ex ia IIC T4 (-20°C <= Ta <= +60°C)
EEx: EEx ia IIC T4 (-20°C <= Ta <= +60°C)
FM: IS / I / 1 / ABCD / T4 Ta <= 60°C; Type IP54, I / 0 / AEx ia / IIC / T4 Ta <= 60°C; Type IP54
Group II MiningATEX: CE Ex I M1
IECEx: IECEx BAS 06.0083X, Ex ia I (-20°C <= Ta <= +60°C)
EEx: EEx ia I (-20°C <= Ta <= +60°C)
